Tipo K PFA isolato a coppia piatta termocoppia cavo / filo (IEC)
Cambia valuta
SKU
XE-2133
8,23 €
6,86 €
Tipo K PFA isolato a coppia piatta termocoppia cavo / filo (IEC)
Coppia piatta isolata in teflon PFA. Il teflon PFA ha una buona resistenza meccanica e flessibilit, resistente a oli, acidi e altri fluidi avversi, gas, vapore e pressione.
Indicazioni
| Descrizione Generale | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments. |
|---|---|
| Lunghezza del cavo | 5m, 10m, 25m, 50m, 100m |

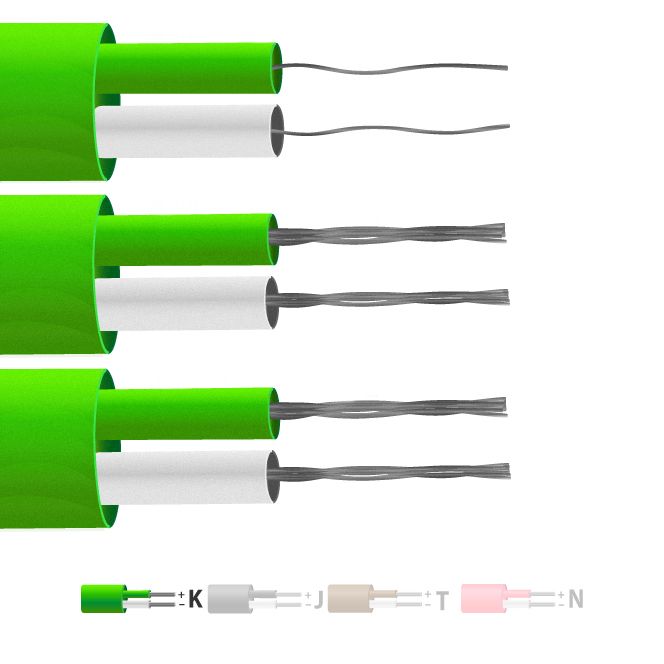

| Cable Type | Single pair of PFA insulated conductors, laid flat with PFA jacket |
| Nucleo / Fili | 1/0.2mm, 1/0.315mm, 7/0.2mm, 1/0.508mm |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Materiale isolante | PFA Insulated |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Massimo Temperatura | +260°C |
| Min. Temperatura | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standard rispettati | Colour code (cores & jacket) to IEC-584-3 |
| Tipo di termocoppia | K |
| Tolleranza | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
