Tipo K Isolato in fibra di vetro Coppia piatta termocoppia Cavo / Filo (IEC)
Cambia valuta
SKU
XE-2163
6,83 €
5,69 €

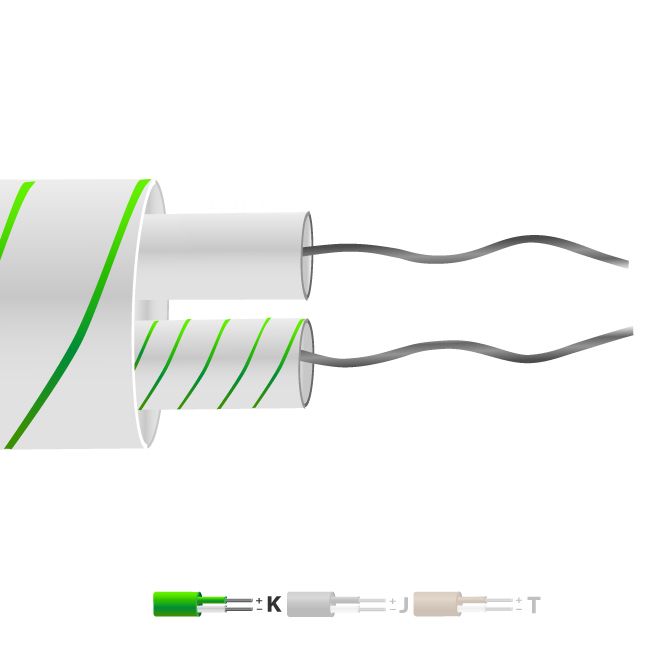

Tipo K Isolato in fibra di vetro Coppia piatta termocoppia Cavo / Filo (IEC)
Costruzione a coppia piatta isolata in fibra di vetro, conduttori posati piatti, fibra di vetro isolata con fibra di vetro complessiva, verniciato siliconico in tutto. Buona resistenza alla temperatura ma non adatto dove sono presenti fluidi.
| Descrizione Generale | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
|---|---|
| Lunghezza del cavo | 5m, 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Nucleo / Fili | 1/0.3mm / 1/0.508mm / 7/02.mm / 1/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green & White |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Materiale isolante | Glassfibre insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Massimo Temperatura | +350°C (short periods up to 400°C) |
| Min. Temperatura | -60°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standard rispettati | Colour code (cores & jacket) to IEC-584-3 |
| Tipo di termocoppia | K |
| Tolleranza | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
