Connettore a filo rapido miniaturizzato per termocoppia Spina e presa AM-N-MQ + FQ Tipo N ANSI
Cambia valuta
- Buy 2 - 9 for 6,97 € 5,81 € each
- Buy 10 - 99 for 5,92 € 4,93 € each
- Buy 100+ for 5,57 € 4,64 € each

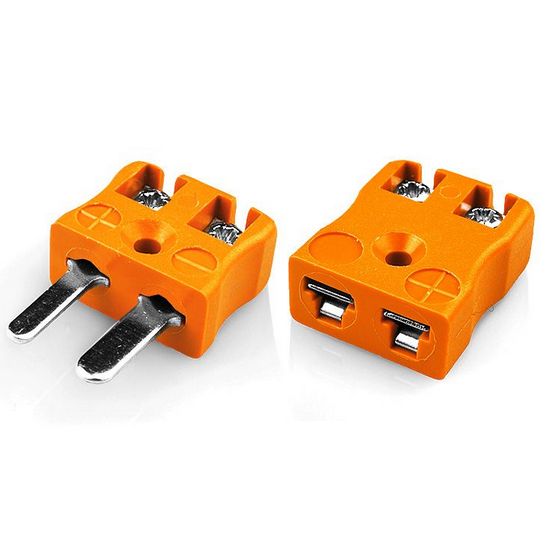

Connettore per termocoppia miniaturizzato Spina a filo rapido e presa AM-N-MQ + FQ Tipo N ANSI
Connettore miniaturizzato con spine piatte. Facile connessione jab-in per una rapida terminazione. Basta spingere il filo e stringere la vite.
Indicazioni
| Descrizione Generale | Easy jab-in connection for rapid termination |
|---|---|
| Tipo di termocoppia | N ANSI |
| Dimensione del connettore | Miniature |
| Tipo di connettore | Quick Wire Plug & Socket |
| Colore | Orange |
| Massimo Temperatura | 220°C |
| Spilli | Flat Pins |
| +Contatto positivo | Nickel / Chromium / Silicon |
| -Contatto negativo | Nickel Silicon |
| Standard rispettati | BS EN 50212:1997. RoHS |
3D Animation of Miniature IEC Thermocouple Connector Quickwire Plug From Labfacility
Miniature Quick Wire Thermocouple Plug IEC *Miniature connector with flat plug pins *Easy 'jab-in' connection for rapid termination *Just push-in wire & tighten screw *Contacts are polarised to prevent incorrect connection *Max temperature 220 deg C *Compatible with the other miniature plugs & sockets About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com
3D Animation of Miniature IEC Thermocouple Connector Quickwire Socket From Labfacility
Miniature Quick Wire Thermocouple Socket IEC *Miniature socket with thermocouple contacts *Easy 'jab-in' connection for rapid termination *Just push-in wire & tighten screw *Will accept wide range of wire sizes *Contacts are polarised to prevent incorrect connection *Max temperature 220 deg C *Compatible with the other miniature plugs & sockets About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com
