Tipo K Cavo / Filo per Termocoppia a Coppia Piatta Isolata in PVC (IEC) - 13/0,2mm
Cambia valuta

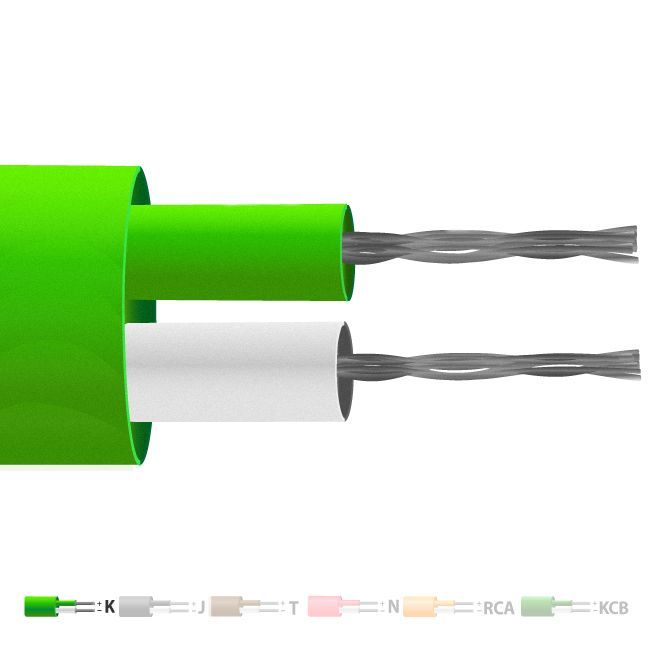

Coppia piatta isolata in PVC tipo K per cavo / filo termocoppia (IEC)
Il cavo compensatore somiglia alla caratteristica termoelettrica della termocoppia rilevante su un intervallo limitato di temperatura ambiente, tipicamente da 0 a 80C. Poich questi cavi sono realizzati con materiali a basso costo, possibile ottenere risparmi sugli impianti rispetto all'installazione di veri cavi di prolunga termocoppia.
Specifiche
| Descrizione Generale | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Lunghezza del cavo | 10, 25, 50, 100 or 200m |
| Cable Type | Flat pair construction |
| Nucleo / Fili | 13/0.2mm |
| Conductor Cross Section 13/0.2 (mm2) | 0.408 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Materiale isolante | PVC Insulated |
| Loop Resistance 13/0.2 (Ohms per combined metre) | 4.5 |
| Massimo Temperatura | 105°C |
| Min. Temperatura | -10°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standard rispettati | Colour code (cores & jacket) to IEC-584-3 |
| Tipo di termocoppia | K |
| Tolleranza | Class 2 |
Labfacility Thermocouple Cables
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 200m, 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go. Find out more on https://www.labfacility.com
Labfacility - Company Overview Presentation
Labfacility are the UK’s leading manufacturer of Temperature Sensors, Thermocouple Connectors and associated Temperature Instrumentation and stockists of Thermocouple Cables. The Company has been trading since 1971 and is ISO 9001 accredited. We have two UK sites – West Sussex and South Yorkshire and export to over 85 countries, Shipments are made to world-wide destinations on a daily basis. In addition to the stocked items, Labfacility also offers bespoke Temperature Sensors. We are specialists in the design and manufacture of custom-built temperature sensors at our 18,000 square foot Yorkshire plant located in Dinnington. We also offer a wide range of components and fittings for sensor installation. Quality and Service are key elements in the continued growth of Labfacility; technical support for both sensing and instrumentation is always freely available from our experienced technical sales teams.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
