4 core ISOLATO in PVC, schermo in rame stagnato, cavo / filo del sensore PRT
Cambia valuta
SKU
XE-2714
19,28 €
16,07 €

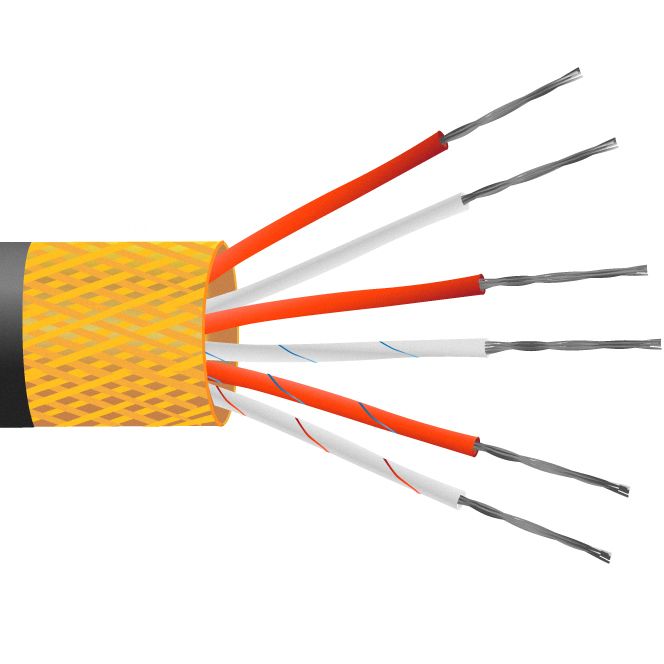

4 core ISOLATO in PVC, schermo in rame stagnato, cavo / filo del sensore PRT
Cavo isolato in PVC per l'estensione dei termometri a resistenza al platino. Comunemente usato per termometri Pt100Ω ma adatto anche con altri tipi come Pt130, Pt500 e Pt1000Ω
Indicazioni
| Descrizione Generale | 4 core PVC insulated 7/0.2mm tin plated copper conductors, twisted cores, polyester tape & nylon cord, tin plated copper braided screen with PVC insulated outer jacket |
|---|---|
| Lunghezza del cavo | 10, 25, 50m |
| Cable Type | Mylar shield with tin plated copper braiding |
| Nucleo / Fili | 7/0.2mm |
| Materiale isolante | PVC insulation |
| Massimo Temperatura | +105°C |
| Min. Temperatura | -10°C |
| Numero di fili | 4 |
| Standard rispettati | Cores colour coded 2 x Red / 2 x White to IEC-751 with black outer jacket |
